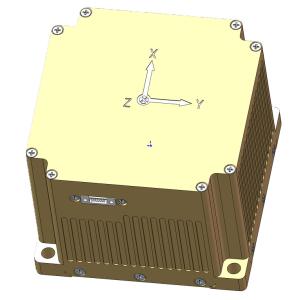

IMU (Merak-IMU01)
This IMU implements a strapdown architecture using optical gyros and accelerometers, applying calibration compensations before outputting formatted data streams. Deployment scenarios include guided munitions and stabilized platforms requiring precise rate measurements.
Design highlights:
1) Adjustable accuracy/stability balance;
2) Failure-resistant construction;
3) Rapid initialization;
4) Clean digital signal path;
5) Extended mean time between failures.
| Model | Merak-IMU01 | ||
| Item | indicator | Description | Parameter |
| Gyro | Zero bias | Bias stability (10s) | 0.3°/h |
| Zero bias stability at variable temperature (100s) | 0.5°/h | ||
| Scaling Factor | Scale factor nonlinearity | ≤20ppm | |
| Other indicators | Random walk coefficient | 0.02°/½h | |
| Input range | 400°/s | ||
| Accelerometer | Deviation | Zero bias repeatability | 0.3mg |
| Zero bias | Bias temperature sensitivity | 50μg/℃ | |
| Scaling Factor | Scale factor repeatability | 300ppm | |
| Scale factor temperature sensitivity | 20ppm/℃ | ||
| Range indicators | Input range | ±20g | |
| Features | Environmental performance | Operating temperature | -40℃～60℃ |
| Storage temperature | -45℃～70℃ | ||
| General Requirements | Power supply | 18～36V(DC) | |
| Stable power consumption | ≤8W | ||
| Mounting hole diameter | 4-Φ4.5mm | ||
| Dimensions(mm) | 70.3*70.3*53 | ||
| Weight | ≤500g | ||
|
|
